JZC350 Mixer Can been Seprated From Concrete Mixer Pump Anytime In Site

Introducción

According to the actual construction requirement in the rural districts, small and medium towns, and various construction projects, our company researched and developed this new versatile equipment “concrete mixer with pump” combined with concrete mixing system and concrete delivering system. It is more convenient for the customers.
inquiry!Leave a Message!

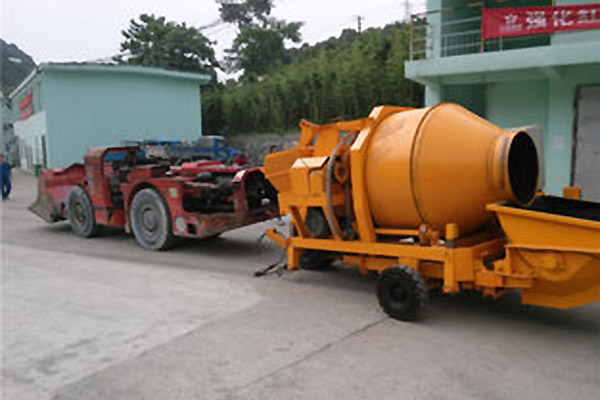

Clients' Working Site

The special mixing concrete pump is a kind of special equipment used in underground coal mine environment (coal mine and non coal mine). It is specially used in underground engineering construction:
1. The construction of concrete pillar bearing 1, mine roadway intersection, cross hall, room;
2. The concrete construction of the lower corner of the mine roadway;
3. The concrete construction of the underground tunnel and other underground facilities.


Advantage

1. There is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
2. The electromagnetic clutch + timer control water system, automatic watering timer automatic control water supply.

Specification

JZC350 Mixer Can been Seprated From Concrete Mixer Pump  At Anytime In Site

Diesel concrete pump with mixer performance parameters
Item Unit HBT25-06/JZC350 HBT20-08/JZC350
Theoretical Output m³/h 25 18
Max. Pressure on Concrete MPa 6 8
The type of distribution valve   S tube valve S tube valve
delivery cylinder mm 180×800 180×800
main oil cylinder mm 90/65×800 110/70×800
Outlet opening diameter mm Φ150 Φ150
Motor model   Y200S-4-B35 Y200S-4-B35
Motor power KW 22 22
Max. diameter of aggregates mm 40 40
Pulling speed Km/h ≤8 ≤8
Maximum theoretical delivery Horizontal distance M 150 200
Maximum theoretical delivery Vertical distance M 60 80
Mixer Type   JZC350 JZC350
Capacity of charge Hopper L 350 350
Capacity of discharge Hopper L 560 560
Agitate motor type   Y132S-4B5 Y132S-4B5
Agitate motor power KW 5.5 5.5
Agitate motor speed rpm 1440 1440
Hoister motor type   YEZ32-4 YEZ32-4
Hoister motor power KW 3.5 3.5
Hoister motor speed rpm 1380 1380
Water pump motor type   40JDB-12 40JDB-12
Water pump motor power KW 0.75 0.75
Diameter of drum mm 1440 1440
length ×width ×height mm 2200×2200 2200×2200
length ×width ×height mm 4950×2200×2650 4950×2200×2650
Weight Kg 4000 4000
