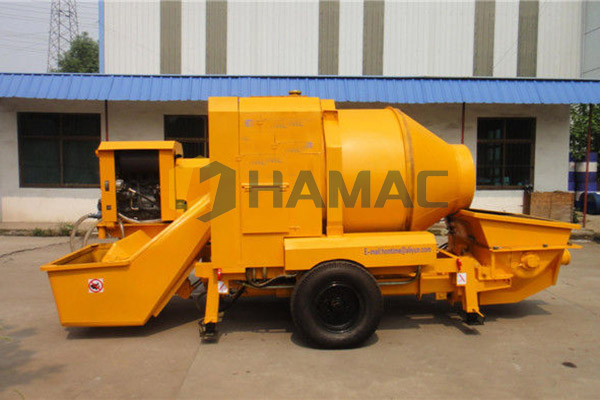

JZC350 Diesel Concrete Pump Easy Operated By Hydraulic Oil Handles

Introducción

Diesel engine is on the rotary platform, with three different optional position: dragging, working and shipping container position. Working position is away from the hopper, avoid diesel close to the pollution source-------loading hopper, to increase reliability, while expanding loader working space. Dgging position close to the machine body, the focus is adjusted to the median of two wheels, and reduce the cross section of the transport process of size, reduce the transport road width.Shipping container position to ensure the machine just enter a standard 20 foot container without dismantling.
inquiry!Leave a Message!

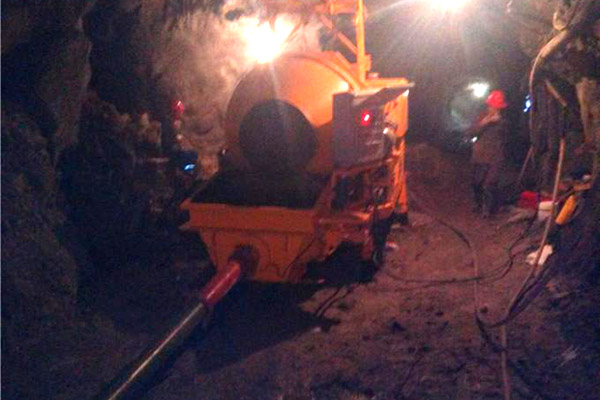

Clients' Working Site

1.  specially designed for hydraulic tipping loading hopper and non accumulator hydraulic system.
2. Only a diesel engine to provide the power to drive tipping loading hopper cylinder, mixing drum, concrete pump stroke cylinders ,swing cylinders, concrete pump agatitor.
3. There is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
4. The electromagnetic clutch + timer control water system, automatic watering timer automatic control water supply.
5. The high median tank layout, oil flow into the hydraulic pump itself, to avoid the lack of oil to demad oil pump, high reliability.
6. The median tank layout, the center of gravity in the middle of the two wheels.
7. The mixer and concrete pump can be easily separated, can realize the independent use and combined use.Tere are two location------ work alone and combination.and it is convenient for the replacement of the concrete piston. The mixer drum is not the barrier located above the concrete pump stroke cylinder part of the inspection, maintenance, it is easy to be maintenance by pull the pump unit out from mixer.

Advantage

1). small site is always belong to the network terminal, wire is thiner, voltage instability. The machine hydraulic system specially designed for above all, with zero load starting, less impact on the power grid, low requirement for network.
2). To small site users, the operating personnel skill is always bad. Our machine is specially designed for hydraulic tipping loading hopper and non accumulator hydraulic system.The bag type accumulator is the component easy damaged, and to replacement rubber bag need professionals, So you suggest your potential customer avoid using mixing concrete pump with accumulator, otherwise it will cause a burden to you.
3). There is only a diesel engine to provide the power to drive tipping loading hopper cylinder, mixing drum, concrete pump stroke cylinders ,swing cylinders, concrete pump agatitor, the electromagnetic clutch + timer control water system, automatic watering timer automatic control water supply.
4).  there is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
5). the high median tank layout, oil flow into the hydraulic pump itself, to avoid the lack of oil to demad oil pump, high reliability.
6). the median tank layout, the center of gravity in the middle of the two wheels, avoid the side tank machine swing between left tyre and right tyre when the machine is dragged, the bearing capacity of the tyre in the side tank machine is inconsistent, resulting in tire life is different, so different trigger traction traction rocking transportation safety.our machine is not the side tank machine.
7). the mixer and the concrete pump adopts detachable connection, both through the sliding rail, can be easily separated, can realize the independent use and combined use of dual function of the mixer and the concrete pump,there are two location------ work alone and combination.and it is convenient for the replacement of the concrete piston. The mixer drum is not the barrier located above the concrete pump stroke cylinder part of the inspection, maintenance, it is easy to be maintenance by pull the pump unit out from mixer.
8). Sliding hopper mixer type with pump has the resonance of the hopper discharge door, pour material quickly, To avoid the unsmooth baiting induced loading hopper motionless. Large water pump, water fast, speed up the machine production efficiency
9). diesel engine is arranged on the rotary platform, with three different optional location: dragging location, working location and shipping container location. Work location is away from the hopper, avoid diesel close to the pollution source-------loading hopper, to increase reliability, while expanding the feeding of loader working space, reducing the demand for construction space. Dragging location close to the machine body, the focus is adjusted to the two rounds of the median, and reduce the cross section of the transport process of size, reduce the transport requirements of the road. Shipping container position to ensure the machine without dismantling the state, just enter a standard 20 foot container, which reduces shipping costs, and without the need for personnel on-site installation at the destination.
10). our factory is the first production company of concrete mixer with pump all over the world, we have developed this machine from 2008 years, after many years of practice improvement and for customers to understand the situation, has been very mature. During the construction, the user is engaged in labor services, there is no risk loans. As long as willing to do, it is easy to make money.If you are overseas users, we recommend that you would better use the hydraulic tipping hopper mixer type, because sliding hopper mixer type need for more electrical knowledge and skills.

Specification

JZC350 Concrete Mixer Pump Is Easy Operated By Hydraulic Oil Handles
concrete pump with mixer performance parameters
Item Unit HBT25-06/JZC350 HBT20-08/JZC350
Theoretical Output m³/h 25 18
Max. Pressure on Concrete MPa 6 8
The type of distribution valve   S tube valve S tube valve
delivery cylinder mm 180×800 180×800
main oil cylinder mm 90/65×800 110/70×800
Outlet opening diameter mm Φ150 Φ150
Motor model   Y200S-4-B35 Y200S-4-B35
Motor power KW 22 22
Max. diameter of aggregates mm 40 40
Pulling speed Km/h ≤8 ≤8
Maximum theoretical delivery Horizontal distance M 150 200
Maximum theoretical delivery Vertical distance M 60 80
Mixer Type   JZC350 JZC350
Capacity of charge Hopper L 350 350
Capacity of discharge Hopper L 560 560
Agitate motor type   Y132S-4B5 Y132S-4B5
Agitate motor power KW 5.5 5.5
Agitate motor speed rpm 1440 1440
Water pump motor type   40JDB-12 40JDB-12
Water pump motor power KW 0.75 0.75
Diameter of drum mm 1440 1440
length ×width ×height mm 2200×2200 2200×2200
wheel number   2 2
length ×width ×height mm 4950×2200×2650 4950×2200×2650
Weight Kg 4000 4000
