PLD Concrete Batching Machine
INTRODUCTION
PLD series concrete batching machine is automatic batching equipment supporting a mixer. It can automatically complete the ratio of sand, stone, cement and other kinds of materials 3-6 (secondary aggregate grading concrete) ingredients procedures designed according to user's concrete requirement.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

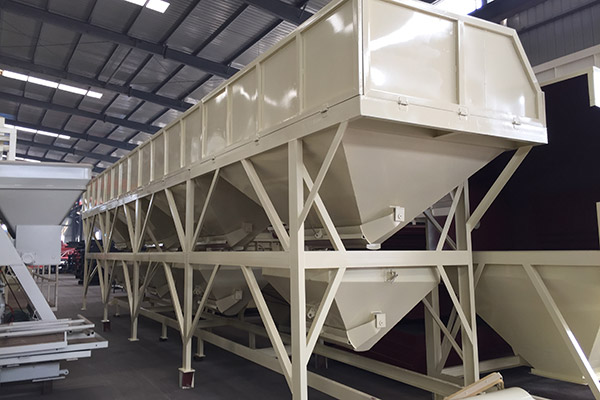

Detailed Photos
Performance
1. High precision electric weighing, PC+PLC control;
2. Digital display on the screen, Reasonable layout,
3. Compact structure, Easy operation,
4. Reliable performance.
Manufacturing Process
Specification
| Model | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Cubage of storage hopper | 2m3 | 2.2m3 | 3.7m3 | 12m3 | 20m3 | 25m3 |
| Cubage of weighing hopper | 0.8m3 | 1.2m3 | 1.6m3 | 2.4m3 | 3.2m3 | 4.8m3 |
| Output rate | 48m3/h | 60m3/h | 80m3/h | 120m3/h | 160m3/h | 280m3/h |
| Accuracy of batching | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Max weighing value | 1500Kg | 2000Kg | 3000Kg | 4000Kg | 5000Kg | 8000Kg |
|
Aggregate types for batching |
2-3 | 2-4 | 2-4 | 3-4 | 3-4 | 4 |
| Feeding height | 3000mm | 3000mm | 3000mm | 3200mm | 3500mm | 3800mm |
| Speed of belt conveyor | 1.25m/s | 1.25m/s | 1.25m/s | 1.0m/s | 1.0m/s | 1.6m/s |
| Power | (2-3)x3Kw | (2-4)x3Kw | (2-4)x3Kw | 11Kw | 11Kw | 15Kw |
| Overall weight | 2500Kg | 2900-3900-4900Kg | 3500-4750-5750Kg | 8500-10500Kg | 10200-12600Kg | 13600Kg |
