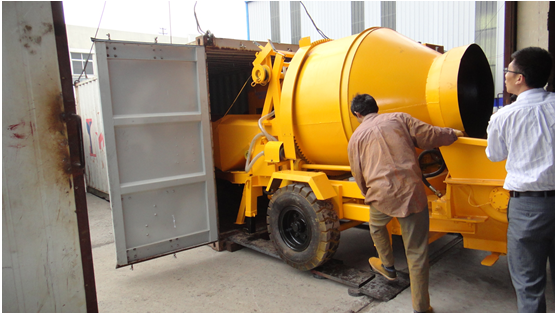

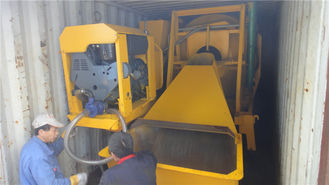

Clients' Working Site
Advantage
There is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
Specification
Diesel concrete pump with mixer performance parameters
Item | Unit | HBT2008JZC350 |
Pump Max Output | m³/h | 15 |
Theoretical Output | m³/h | 23 |
Max. Pressure on Concrete | MPa | 8 |
delivery cylinder | mm | 180×800 |
main oil cylinder bore/Rod diameter x stroke | mm | Φ110/Φ65×800 |
Oil tank capacity | L | 250 |
Outlet opening diameter | mm | Φ150 |
Diesel model | F4L912(DEUTZ) | |
Diesel power | KW | 45 |
Max. diameter of aggregates | mm | 40 |
Maximum delivery Horizontal distance | M | 200 |
Maximum delivery Vertical distance | M | 40 |
Mixer Type | TOPLL | JZC350 |
Capacity of charge Hopper | L | 560 |
Capacity of discharge Hopper | L | 350 |
Charge hopper cylinder bore/Rod diameter x stroke | mm | Φ80/Φ50×600 |
Diameter of drum | mm | 1440 |
Drum rotary speed | rpm | 15 |
Tread distance | mm | 2250 |
length ×width ×height | mm | 5500×2300×2700 |
