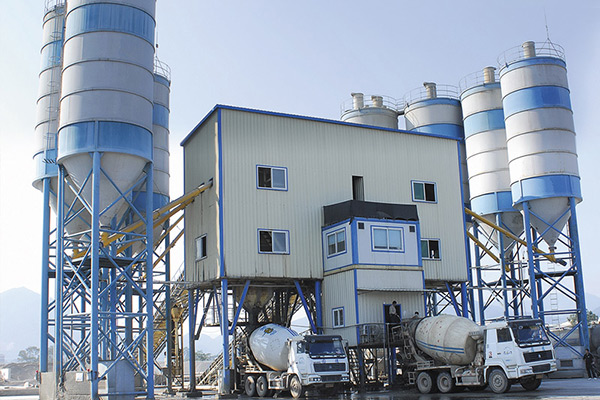

Skip hoist type Concrete Batching Plant

INTRODUCTION

Skip hoist concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories which produce the pre-fabricated concrete component.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

Detailed Photos

FEEDBACK

Performance

1. Skip hopper feeding system, cost effective. It will occupy small area than the belt conveyor type;

2. Adopt twin horizontal shaft forced type concrete mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.

3. Excellent environmental protection, dust collection system and anti-noise design.

4. Accurate weighing system (aggregate, cement, water, additive).

5. PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production.

Manufacturing Process

Specification

Type		HZS25	HZS35	HZS50	HZS75
Theoretical production capacity(m³/h)		25	35	50	75
Concrete mixer	Type	JS500	JS750	JS1000	JS1500
	Power(KW)	24.75	38.6	51	65.5
	Discharging capacity(L)	500	750	1000	1500
	Aggregate size(Pebble/Macadam)(mm)	80/60	80/60	80/60	80/60
Aggregate Bin volume(m³)		2/3×3.2	2/3/4×7.3	2/3/4×8.3	2/3/4×12
Weighing Accuracy	Aggregate (KG)	1500Kg ±2%	2200Kg ±2%	3000Kg ±2%	4500Kg ±2%
	Cement(KG)	300Kg ±1%	450Kg ±1%	600Kg ±1%	1500Kg ±1%
	Fly ash(KG)			400Kg ±1%	600Kg ±1%
	Water (KG)	200Kg ±1%	200Kg ±1%	400Kg ±1%	600Kg ±1%
	Additive(KG)		30Kg ±1%	50Kg ±1%	50Kg ±1%
Discharging height(M)		3.8 m	3.8 m	3.8 m	4.1m
Gross weight(T)		10	15	40	50
