MP750 Planetary Concrete Mixer

Introducción

MP series planetary concrete mixer adopted Germany technique used for mixing concrete .It is not only applies in common concrete ,precast concrete but also in high performance concrete. Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete. It is suitable for mixing dry hard concrete (roller compacted concrete). It is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

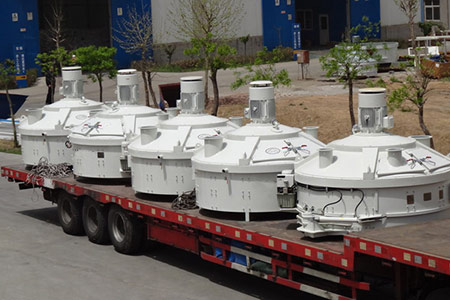

Clients' Working Site

Advantage

1. Motion track

Motion track :the revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output without causing the segregation of materials with diffrernt grain size and weight.the movement of the material inside the trough is smooth and continuous.As shown in the picture,the blades track covers the whole bottom of the trough after a cycle.

2. Gearing device

Gearing system:the power transmisssion is realized by a hard surface gear which is designed specially by our company.Fluid clutch is installed between the motor and the gearbox. It can keep the mixer start up normally even in the full load condition.The driving force provided by gearbox drives the mixing arms to do not only have a rotation but also has a revolution,the more complex of the motin track,the more turbulent the mixing is,and then the mixer works more effectively ,its mixing more homogeneos.

3. The security of the maintenance door device

According to market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.

4.Discharging device

Discharging device: according to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most .And there is special sealing device on the discharging door to ensure the sealing reliable.

6. Security device of lifting hopper

the security device of skip hopper safeguards against head-clashing when the hopper is climbing up.

7. Hydraulic pump station

Special designed hydraulic power unit is used to provide power for more than one discharging gates. On emergency, these discharging gates can be opened by hand.

8. Mixing device

Mixing device: driven by the gearing system, the blades fixed on mixing arms and the scarpers arms crush and overturn the material to complete the compelling mixing

9.Access door

Maintaining door: according to the market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.

10. Sprinkler head

The special designed sprayer is installed on the water pipe .the spraying water cloud can cover more area and also make the mixing more.

11. Viewing port

There is an observing port on the maintaining door .You can observe the mixing situation without cutting off power.MP company can long-termly supply the wearing parts.

12. Enhance the hopper

he skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectivelyprevents the dust overflow the trough during the mixing to protect the environment.

13. Temperature and moisture

Temperature and moisture sensor: To ensure concrete and prefabricated parts quality. the sensor of temperature or moisture made in BIKOTRONIC in Germany can be selected to measure temperature or moisture of material being mixer.

14.Weighing system

According to the requirements with powder measure, the aggregate metering and water metering.

15. Dust catcher

The mixer equipped with dust catcher dust catcher to protect the environment.

16. Control system

The control system can automatically control the process of dosing, mixing and discharging.

Specification

Item	Type
Item	MP250	MP330	MP500	MP750	MP1000	MP1500	MP2000	MP2500	MP3000
Intput capacity(L)	375	500	750	1125	1500	2250	3000	3750	4500
Output capacity(L)	250	330	500	750	1000	1500	2000	2500	3000
Output capacity(kg)	600	800	1200	1800	2400	3600	4800	6000	7200
Diameter of mixing Trough(mm)	1300	1540	1900	2192	2496	2796	3100	3400	3400
Mixing power(kw)	11	15	18.5	30	37	55	75	90	110
Discharging power(kw)	2.2	2.2	2.2	2.2	3	3	4	4	4
Scraper(nr)	1/2	1/2	1/2	1/3	2/4	2/4	3/6	3/6	3/9
Paddle	1	1	1	1	1	1	1	1	1
Discharging paddle	-	-	-	1	1	1	2	2	2
Weight(kg)	1200	1700	2000	3500	6000	7000	8500	10500	11000
mm Dimension (LWH)	1570 x1480 x1750	1862 x1850 x1855	2220 x2071 x1880	2550 x2295 x2195	2893 x2606 x2217	3223 x2906 x2425	3625 x3235 x2630	3893 x3555 x2695	3893 x3555 x2975
Lifting power(kw)	3	4	4	7.5	11	15	18.5	-	-
