YHZS50 Mobile Batching Plant

Introducción

YHZS50 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the advantage of many models in China and overseas and the advanced technology, combing the experience of HAMAC Group in the past years. The batching unit, aggregate conveying unit, water supplying and additive agent supplying system, scaling system, mixing system, electrical control system and pneumatic system are centralized in one trailerized chassis. It has the feature of instant trailing, instant stop, reasonable structure, well function, reliable working, convenient operation, accurate scale, particularly suitable for moving sites and construction site like road, bridge, dam, airport.
inquiry!Leave a Message!

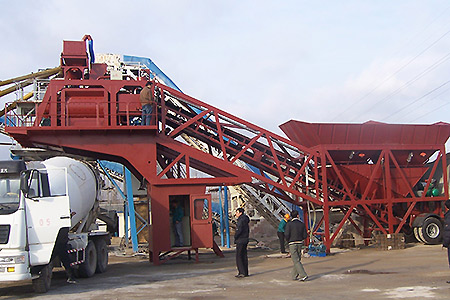

Clients' Working Site

This series of mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.

 concrete batching plant   concrete batching plant

Advantage

1. Adopting module structure, designed as per the loading of container standard. All modules are in one trailing unit.  Easy for installation and disassembly. Fast for moving.
2. Main mixing unit is JS1000 double-shaft, forced concrete mixing mixer, with good mixing quality, high production efficiency. Perfect mixing can be done within ideal time period for dry-hard, half-dry-hard, plastic and concrete with any mixing ratio.
3. All scaling elements and control elements of scaling unit are imported elements and controlled by computer, guaranteeing completely accurate scale and stable function.
4. Platform or ladder is equipped to each part needing maintenance and repairing. Good for maintenance.
5. The whole system adopts complete automatic system via computer, with dynamic panel display, to show clearly of the running of each part. Visualized monitor interface provides clear and accurate observing to the site working procedure. Table or list can be print out.
6. Electrical control system adopts import elements, providing a stable and powerful function.  Automatic test for the abnormal working condition, Word, sound, light alarm, easy and good for the maintenance and trouble shooting.

Specification

Technical Data of YHZS50 Mobile Concrete Batching Plant:
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1000
Volume: 1600 L
Capacity: 1000 L
Paddle quantity: 2*8 pieces
Paddle Speed: 25.5 r/min
Mixing Motor: 2*18.5kw
2. CONTROL SYSTEM:
PLC command and control operation
Main electrical components: Schneider
17colorful computer
Manuel and Auto Control is freely changeable
3. AGGREGATE SYSTEM
3.1.1Aggregate Batcher PLD1600
Volume: 4×8m3=32
Sort of aggregate: 4
Capacity: 80 m3/h
Power: 11 kw
Sand vibrator: 0.37kw×2
3.2. Aggregate Belt Conveyor 1 unit
Width:800 mm
Length: 18456mm
Speed: 1.6 m/s
Motor: 7.5 kw
4. WEIGHING SYSTEM:
4.1 Aggregate weighing 1 unit
Weighing Capacity: 1.6 m3Precision: ±2%
4.2 Cement weighing 1 unit
Weighing Capacity: 1m3
Precision: ±1%
4.3 Water Weighing 1 unit
Weighing Capacity: 150 kg
Precision: ±1%
4.4 Additive Weighing 1 unit
Weighing Capacity: 40 kg
Precision: ±1%
5. CEMENT SYSTEM
Cement Silo: 30 Ton
Cement Screw Feeder: 2 units
Diameter: Φ219mm
Length: 11.8 m
6. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
Pneumatic valve: Φ50 mm
Pump: 3kw
7. WATER SYSTEM
Submersible pump: 3kw
Water pump: 0.75kw
Water tank: 3 m3
8. AIR SYSTEM Air
Compressor: 1 unit
Power: 7.5kw
Pressure: 0.7Mpa
Airflow: 0.8 m3/min
