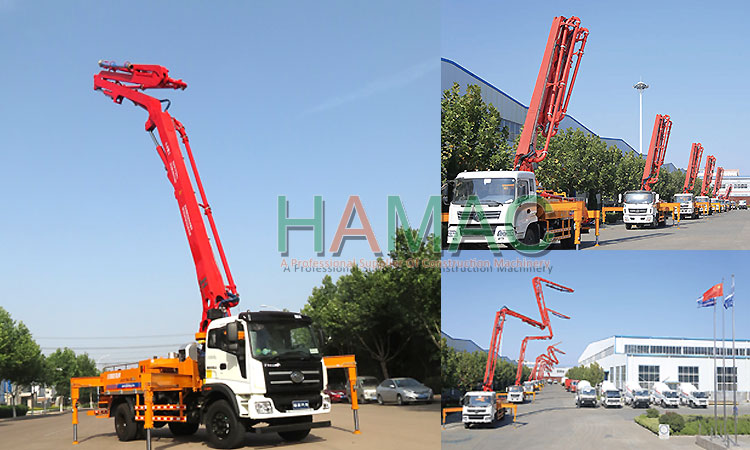

HMC5028 Truck Concrete Pump Boom

Introducción

HMC5028 Truck Concrete Pump Boom is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumping system. Jib structures are flexible, support legs occupy small space, the trucks move easily, safe and stable, the vehicle is 2300mm or 2350mm wide with perfect passing ability.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

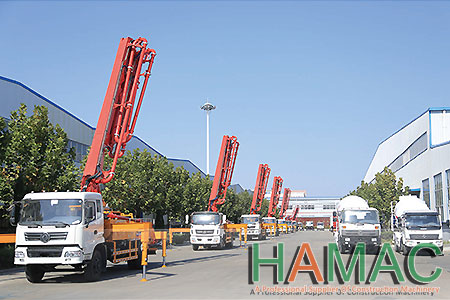

Clients' Working Site

Advantage

1. The construction is especially for the new rural middle-low levels.
2.The manufacture of short arm frame designed for high-speed rail construction.
3.The design of national IV emission standard for energy conservation, and environmental protection
4.Hydraulic automatic reversing of pumping system is for simple maintenance.
5.18-35 meters arms can move up and down, in accordance with high-speed rail laws.
6. X-legs is designed to lead more safe and stable operation.
7.Extremely high performance price ratio and use reliability help the party make profits.

Specification

HMC5028 Truck Concrete Pump Boom
CHASSIS	Chassis	FAW/FOTON
	Emission standards	National standard IV
	Engine	DACHAI or YUCHAI
	Power and rated speed of engine	200p/2000rpm
	Wheelbase	4800
	Max driving speed	80km/h
	Vehicle approach angle/departure angle	24.6°/15.6°
	Tire type	10.00R20 18 layers
BOOM SYSTEM	Max concrete placing height	27.3m
	Max concrete placing radius	23.8m
	Max concrete placing depth	16.8m
	First arm length(MM)	7000
	Second arm length(MM)	5700
	Third arm length(MM)	5700
	Fourth arm length(MM)	5400
	Arm foldable angle	90/180/360/540
	Boom control system	Load sensing proportion control system
	Arm folding form	M type
	Turret rotation angle	90°
	Front support leg span	5840
	Back support leg span	4050
	The leg longitudinal distance (MM)	6300
	Leg opening type	X-H
	Trail length of hose	3000mm
	Diameter of pipeline (MM)	125
Electrical control system	Control Power Supply	24v
	Control model	PWM
	Working voltage	24
	Electric parts	Omron
	Wireless remote control	Germany HBC or homebred
Hydraulic transmission system	Hydraulic system type	Open circuit
	Rated working pressure	31.5Mpa
	Main oil pump	Rexroth /Kawasaki
	Main oil pump model	A11VO190，K3V140 K3V180
	Main oil pump capacity	190，140,180
	Electro-hydraulic directional control valve	Imported or Domestic
	Suction and back oil filter	Liming(domestic)
	Jib multi-way valve	HAWE or domestic
	Jib balance valve	Italy
	Jib oil pump	Domestic
	Support leg multi-way valve	Italy or domestic
	Safety valve	Imported or domestic
	Oil cylinder hydraulic seals	Parker
	Hydraulic hopper capacity	450
	Hydraulic oil cooling	Air-cooling
	Main oil cylinder	XIELI(domestic)
	Transfer case	Germany STIEBEL or domestic
	Slewing reducer	Domestic brand
	Hose connection	Eaton
Cleaning system	Air pressure or plunger pump
DIMENSIONS WEIGHT	Total length of vehicle（MM）	10010
	Total width of vehicle（MM）	2300
	Total height of vehicle（MM）	3610
	Total weight of vehicle（T)	18.5
PUMPING SYSTEM	The type of distribution valve	S valve
	Concrete piston	Domestic
	Max. outlet pressure(H/L)	10/5
	Concrete cylinder Dia x Stroke	200/1200-1450
	Max. feeding height(MM）	1450
	Hopper capacity(M3)	0.65
	Concrete slump	160-220
	Allowable max diameter of aggregate（MM）	40
	Lubricating model	Centralized automatic
