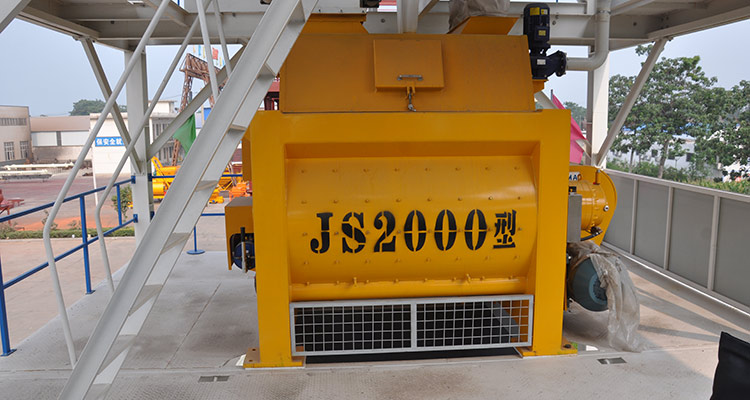

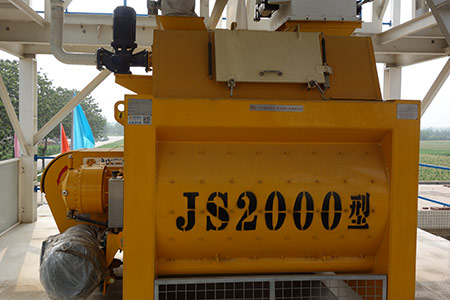

JS2000 Concrete Mixer

Introducción

JS2000 series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

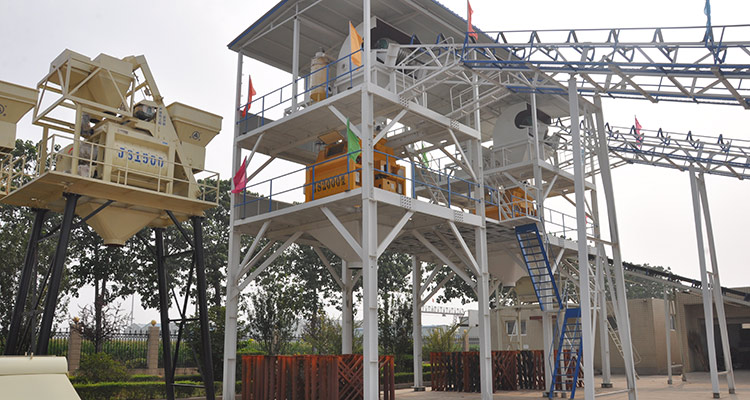

Clients' Working Site

Advantage

1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.

Specification

Model		JS500	JS750	JS1000	JS1500	JS2000	JS3000	JS3500	JS4000
Discharging volume (L)		500L	750L	1000L	1500L	2000L	3000L	3500L	4000L
Feeding volume (L)		800L	1200L	1600L	2400L	3200L	4800L	5600L	6400L
Capacity		≥25m³/h	≥37.5m³/h	≥50m³/h	≥75m³/h	≥100m³/h	≥150m³/h	≥180m³/h	≥200m³/h
Maximum aggregate size (pebble/gravel)mm		40/50	40/60	60/80	80/100	80/100	80/120	80/120	80/120
Cycle time (S)		72	72	60	60	60	60	60	60
Total weight (kgs)		4000	5500	8700	11300	15000	11450	12000	19000
Discharge height (m)		3.8	3.8	3.8	3.8	3.8	3.8	3.8	3.8
Mixing blade	Rotary speed	35r/min	26r/min	29.6r/min	24.5r/min	24.5r/min	21r/min	21r/min	21r/min
Quantity	2×7	2×7	2×8	2×8	2×8	2x10	2x10	2x11	2x12
Mixing motor	Model	Y180M-4	Y200L-4	Y180M-4	Y225M-6	Y250M-6	Y280M-6	Y280M-6	Y315S-6
Mixing motor	Power	18.5kw	30kw	2x18.5kw	2x30kw	2X37kw	2X55kw	2X55kw	2X55kw
Hoist motor	Model	YEZ1325-4-B5	YEZ132M-4-B5	YEZ160L-4	YEZ180L-4	YEJ180L-4	Y25M -4	Y25M -4	Y25M -4
Hoist motor	Power	5.5KW	7.5KW	15KW	18.5KW	22KW	2 × 55 kw	2 ×55 kw	2 × 75 kw
Pump motor	Power	1.1KW	1.1KW	3KW	3KW	4KW	5KW	5KW	6KW
