HM-150TB Hydraulic Paving Block Machine
INTRODUCTION
HM-150TB Hydraulic Paving Block Machine uses of advanced dual hydraulic proportional control technology. This could branch of the oil hydraulic system pressure and regulate fuel efficiently. We offer Hydraulic Hollow Block Making Machine that is shaped like an egg laying type hydraulic activated Concrete Block Making Machine on wheels. This machine places block on the concrete floor and move about laying other blocks. All type of concrete blocks can be fabricated by affixing different designs of concrete mould and ram in the machine.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

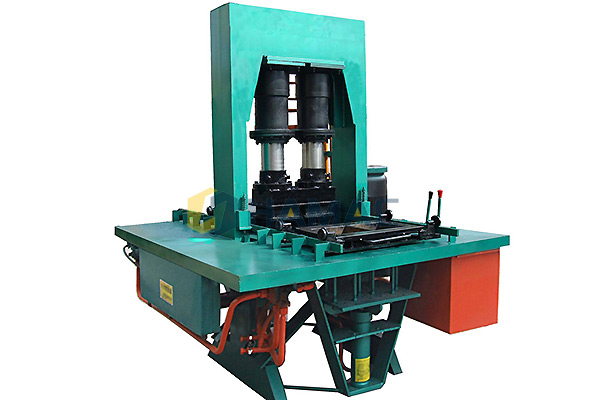

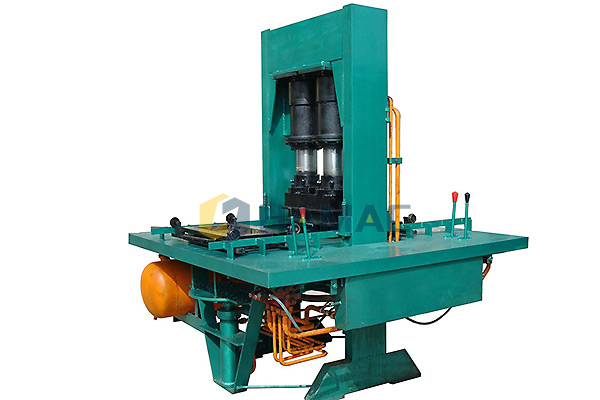

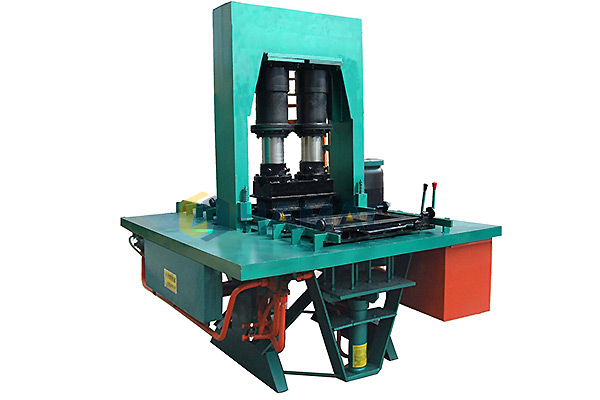

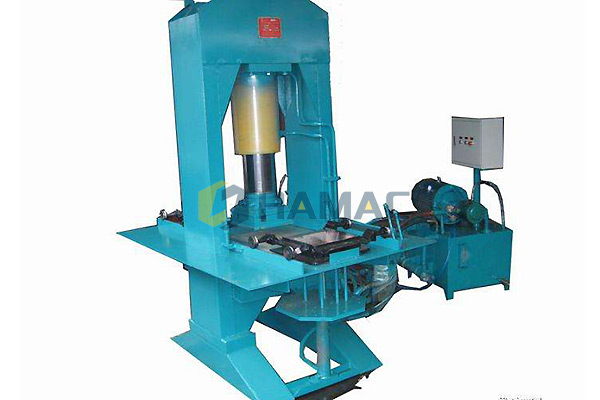

Detailed Photos
Performance
1. Hydraulic paving block machine adopts mass flow automatic variable pump and electromagnetic hydraulic valve, with high pressure, rapid lifting, compression automatic bounce back, and adjustable compressing time, high productivity. can produce many kinds of paver and interlock bricks,just exchanging the moulds.
2. Hydraulic sidewalk brick making machine using large-flow automatic variable pump and electromagnetism valve to meet strong pressure speedy lifting and pressuring time adjustment.
Manufacturing Process
Specification
HM-150TB paver machine main technical parameter:
| Max pressure | 1500KN |
| Total power | 11kw |
| Production | 1500-2000 blocks/day |
| Machine weight | 3200kg |
| Machine size | 2390x2200x2550mm |
| Maximum specification（block） | 500x500x150mm |
| Working position | Two working positions |

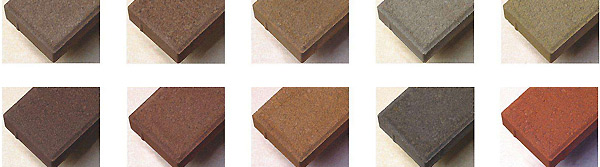

| blocks | Can make all kind of paver block,kerbstone,lawn block |
| Workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status. | |
Production Capacity
| Size(LxWxH) | Pcs/ 8 Hr | Size(LxWxH) | Pcs/ 8 Hr |
| Paver:200X100X60 | 1800-2000pcs | Paver:250x250x60 | 1800-2000pcs |
| Paver:200X165X60 | 1800-2000pcs | paver | 3600-4000pcs |
| Paver:225X112.5X60 | 1800-2000pcs | paver | 1800-2000pcs |
