Solution
![](/uploads/allimg/170330/2-1F33014064Q39.jpg)
![](/uploads/allimg/170330/2-1F330140AU23.jpg)
![](/uploads/allimg/170330/2-1F330140F9564.jpg)
2. To make the steel bar with correct length after it is processed to straight.
![](/uploads/allimg/170330/2-1F330140J93M.jpg)
3. Put the steel bar into the concrete pole mould, and to bind the straight bar and ring bar to be a support frame,
![](/uploads/allimg/170330/2-1F330140P2b6.jpg)
![](/uploads/allimg/170330/2-1F3301409233b.jpg)
![](/uploads/allimg/170330/2-1F330140Z0642.jpg)

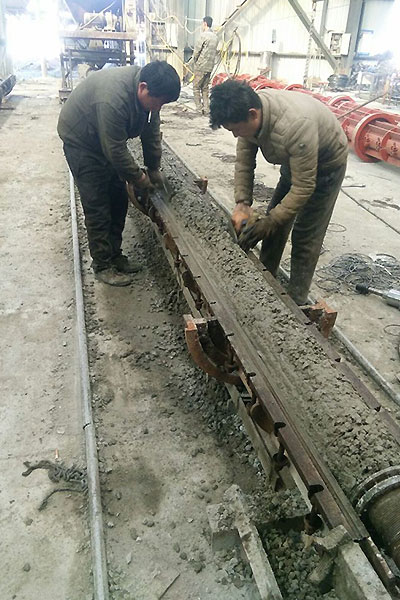

4. Pour the concrete into the mould, then close the two parts mould as a complete part and to fix them tightly with bolts;
![](/uploads/allimg/170330/2-1F330140959E9.jpg)
![](/uploads/allimg/170330/2-1F330140T3400.jpg)
![](/uploads/allimg/170330/2-1F330141022K0.jpg)
![](/uploads/allimg/170330/2-1F3301425135J.jpg)
5. Put the mould with concrete on the centrifugal machine and rotate at a high speed, to make sure all the concrete stick on the mould wall;
![](/uploads/allimg/170330/2-1F33014105Wb.jpg)
![](/uploads/allimg/170330/2-1F330141112E2.jpg)
![](/uploads/allimg/170330/2-1F33014254C17.jpg)
6. Take if from the centrifugal machine and put it into the steam kiln to expedite concrete solidification. After this step, the concrete will be solidified at 95% percentage;
![](/uploads/allimg/170330/2-1F33014114D09.jpg)
![](/uploads/allimg/170330/2-1F330142605339.jpg)
![](/uploads/allimg/170330/2-1F3301413252K.jpg)
7. Take out the mould and put the concrete pole at the stock place;
![](/uploads/allimg/170330/2-1F33014145I31.jpg)
![](/uploads/allimg/170330/2-1F330141512A8.jpg)
For detailed information and solution, please contact us and consult our professional engineers.
Video of Concrete Utility Pole Production Line
